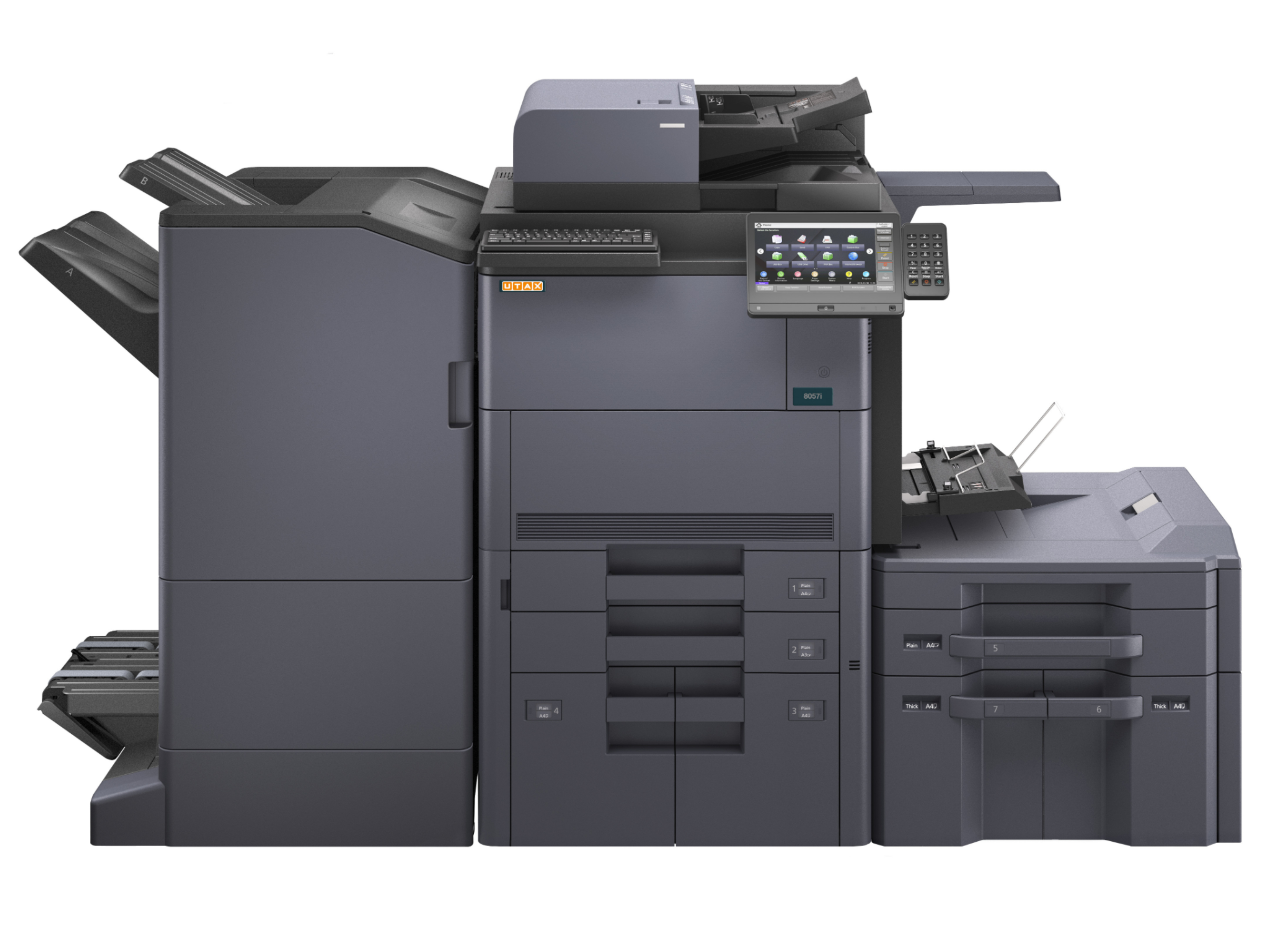

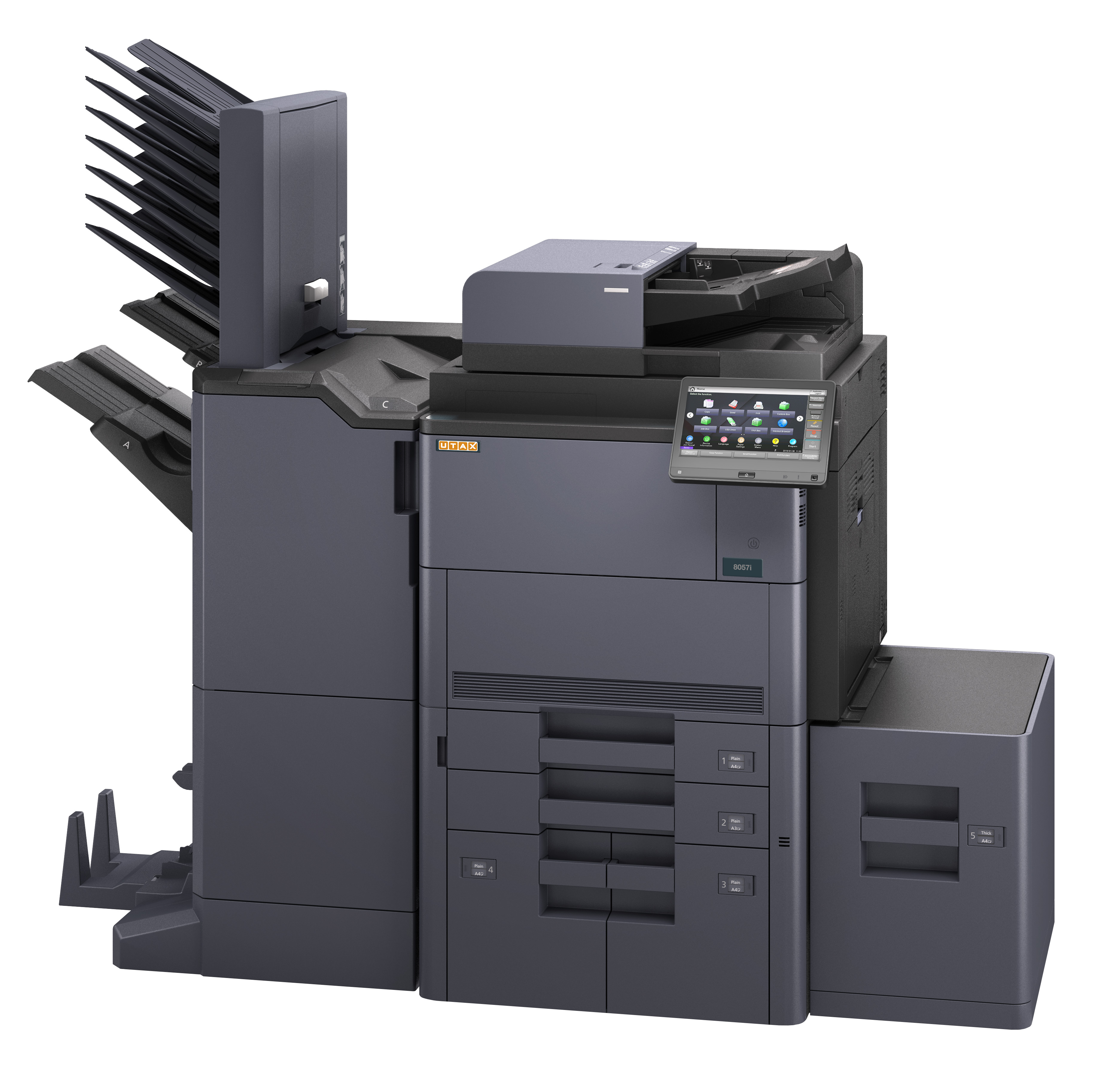

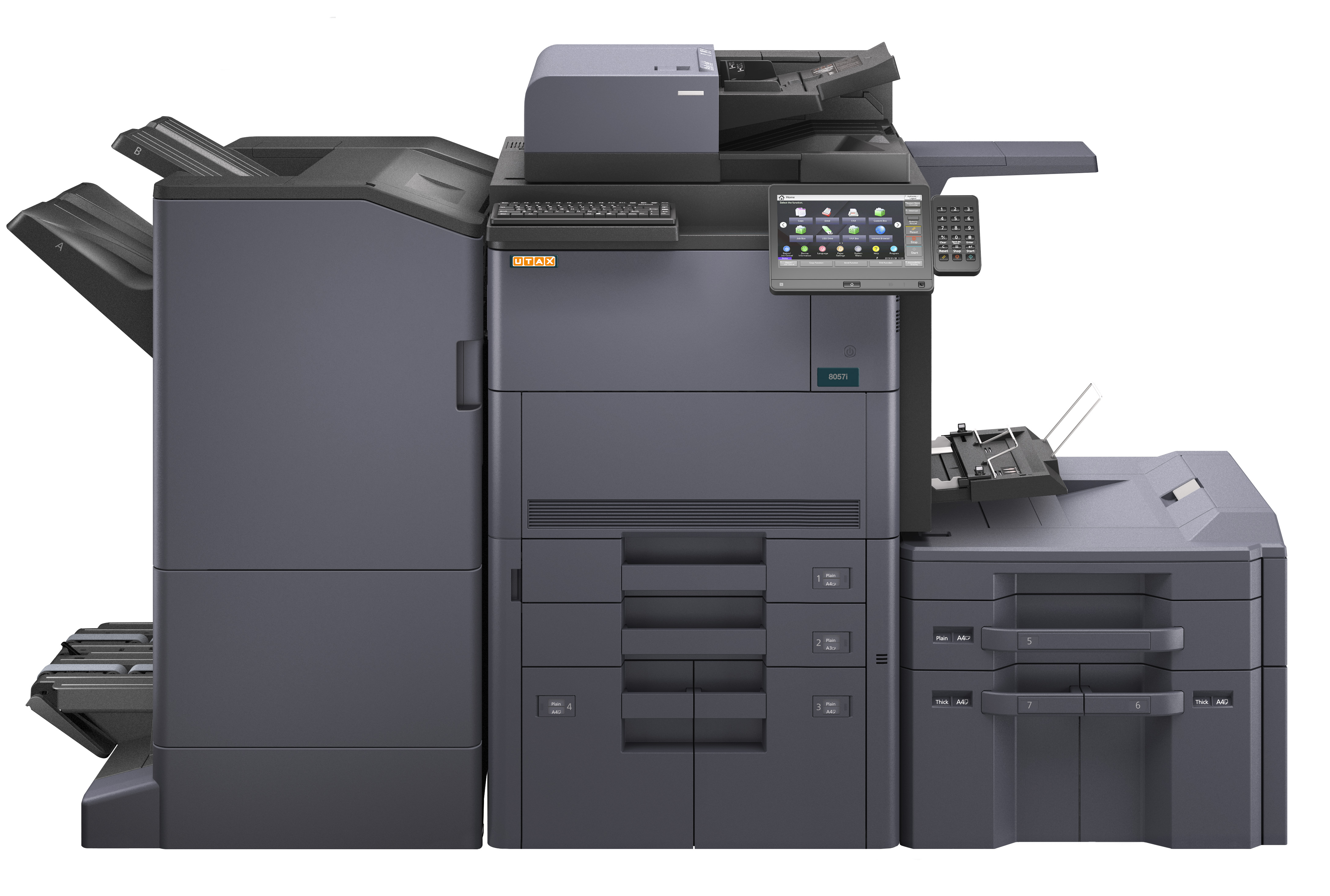

UTAX 8057i

[8057i]

Multifunzione/bianco e nero/ A3


Specifiche Tecniche

Type
Console Unit
Function
Copy
print
scan
optional: fax
Print technology
Laser b/w
Original format
max A3 from platen glass
Original feeder
Dual scanner with ultrasonic sensor for multi-feed detection (A6R-A3, capacity: 270 sheet A4, paper weight 35-220 g/m² [DIN A5R-DIN A3])
Print speed (DIN-A4, Simplex) B/W
80
Print speed (DIN-A3, Simplex) B/W
40
Copy speed (DIN-A4, Simplex) B/W
80
Copy speed (DIN-A3, Simplex) B/W
40
1st page (printing, b/w)
4.1
1st page (copying, b/w)
3.7
Warm-up time
30
Copy resolution
600 x 600 dpi
Greyscales
256
Paper feed (Universal cassettes amount)
2 x 500 sheet universal cassettes
Paper feed (1st cassette types)
A5R-A3+ [max 305 x 457 mm]
Paper feed (2nd cassette types)
A5R-A3+ [max 305 x 457 mm]
Paper feed (Multi-Bypass amount)
1 x 500 sheet
Paper feed (Multi-Bypass types)
A6R-A3+
Banner [305 x 1,219 mm]
Paper feed (Large Capacity Cassette amount)
2 x 1,500 sheet
Paper feed (Large Capacity Cassette 1 types)
A4
Paper feed (Large Capacity Cassette 1 types)
A4
Paper feed (print-only)
A3+
Paper weights (Universal cassette min)
60
Paper weights (Universal cassette max)
256
Paper weights (Multi-Bypass min)
60
Paper weights (Multi-Bypass max)
300
Paper weights (Duplex min)
60
Paper weights (Duplex max)
256
Paper output
250 sheet A4 (lower tray)
100 sheet A4 (lower tray)
with Copy tray type D
System memory (RAM)
4.5
System memory (SSD)
8
System memory (HDD)
320
Continuous copying (min)
1
Continuous copying (max)
9999
Zoom (min)
25
Zoom (max)
400
Zoom (step)
1
Functions
Adjustable colour touch screen (10.1 inch)
duplex
1000 management codes
skip blank pages
trusted platform modul (TPM)
secure boot and run time integrity check
etc.
Dimensions (height)
1234
Dimensions (width)
750
Dimensions (depth)
822
Weight
150
Mains voltage
220/240 V
Utility frequency
50/60 Hz
Power consumption (max)
2400
Power consumption (busy)
1170
Power consumption (standby)
110
Power consumption (sleep)
0.7
Power consumption (TEC)
1.44
Safety
GS/TÜV
CE
Type
Integrated within the system
Print format
A6R-A3+
Print resolution (max)
1,200 x 1,200 dpi
Processor
Freescale QorIQ T1024 (Dual Core) 1.4 GHz
Interfaces
USB 2.0
10/100/1000BaseTX
USB host
NFC
Network protocols
TCP/IP
Net BEUI
Operating systems
Windows 7
Windows 8.1
Windows 10
Server 2008
Server 2008 R2
Server 2012
Server 2012 R2
Server 2016
Server 2019
Novell NetWare
Linux
Mac ex OS 10.9
Emulations
PCL6
KPDL 3 (PostScript 3 compatible)
XPS
PDF
PRESCRIBE Ile
Functions
USB direct printing
PDF/XPS direct printing
Ipsec
SNMPv3
printing of e-mails
private printing
barcode printing
Mobile Print (Android, iOS)/Apple AirPrint
Google Cloud Print
Scan type
CCD colour and b/w
Scan format
max A3
Scan speed (Feeder 1, simplex, colour)
120
Scan speed (Feeder 1, simplex, b/w)
120
Scan speed (Feeder 1, duplex, colour)
220
Scan speed (Feeder 1, duplex, b/w)
220
Scan resolution
200 dpi
300 dpi
400 dpi
600 dpi
Scan mode
text
photo/text
optimised for OCR
File types
TIFF
JPEG
PDF
PDF/A
high compression PDF
encrypted PDF
XPS
OpenXPS
Interfaces
10/100/1000BaseTX
Network protocol
TCP/IP
Operating systems
Windows 7
Windows 8.1
Windows 10
Server 2008
Server 2008 R2
Server 2012
Server 2012 R2
Server 2016
Server 2019
Functions
Scan to SMB
scan to e-mail
scan to FTP
scan to USB
TWAIN scan
WIA scan
SMTP authentication
LDAP
Type
Faxsystem 12
Compatibility
Super G3
Original format
max A3
Modem speed
33.6
Transmission speed
3 seconds or less using JBIG
Compression method
JBIG
MMR
MR
MH
Fax resolution
Standard (200 x 100 dpi)
fine (200 x 200 dpi)
super fine (200 x 400 dpi)
ultra fine (400 x 400 dpi)
600 x 600 dpi
Fax memory
170
Abbreviated dial
2000
One touch dial
1000
Group dial
500
Operating systems
Windows 7
Windows 8.1
Windows 10
Server 2008
Server 2008 R2
Server 2012
Server 2012 R2
Server 2016
Server 2019
Functions
Network fax driver
automatic redialling
delayed transmission
max 2 fax kits for parallel transmission and reception
Finisher
DF-7110 (capacity: 4,000 sheet A4, stapling max 65 sheet A4)
DF-7130 (capacity: 4,000 sheet A4, stapling max 100 sheet A4)
PH-7C hole punch unit for DF-7110/7130
BF-730 brochure module for DF-7110 (max 20 sheet saddle stitching and folding A4/A3, tri-folding max 5 sheet A4)
BF-9100 brochure module for DF-7130 (max 20 sheet saddle stitching and folding A4/A3, tri-folding max 5 sheet A4)
MT- 730 (B) Multi Tray für DF-7110
Paper feed
PF-730 (B) (2 x 500 sheet universal cassettes [A5R-A3+])
PF-740 (B) (2 x 1,500 sheet large capacity cassette [A4])
PF-7130 (500 sheet multi-purpose cassette [A5R-A3+], required if PF-730 (B)/PF-740 (B) is installed)
PF-7120 (3,000 sheet large capacity tray [A4], side deck)
Other options
Internet fax kit (A)
Card authentication kit (B)
Keyboard holder 10
Banner guide 10
UG-33 ThinPrint® kit
UG-34 Emulation option kit
IB-50 Gigabit Ethernet card
IB-51 WLAN card
IB-35 WLAN card
NK-7120 Numeric Keyboard (10 keys)
Copy tray type D
