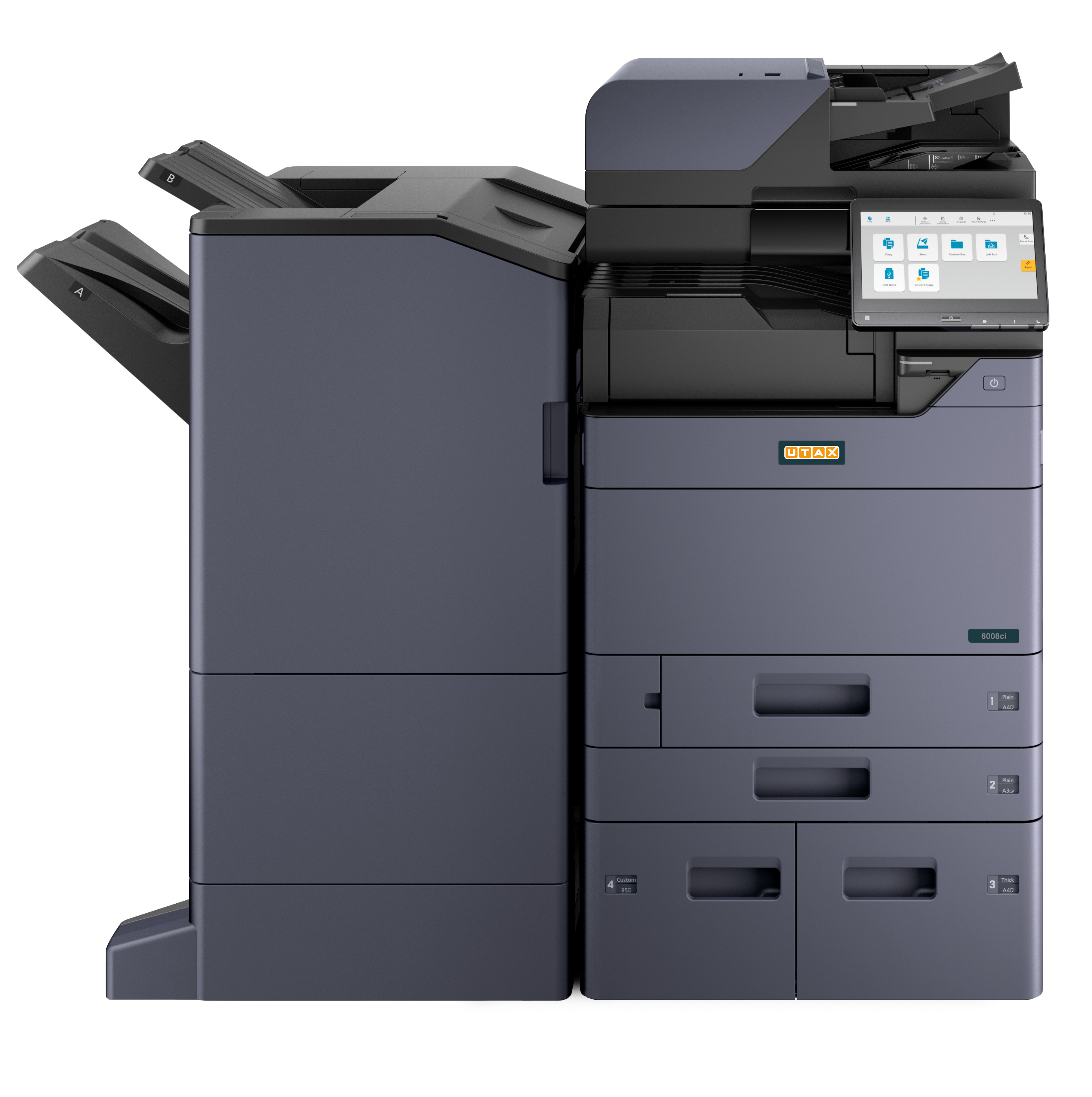

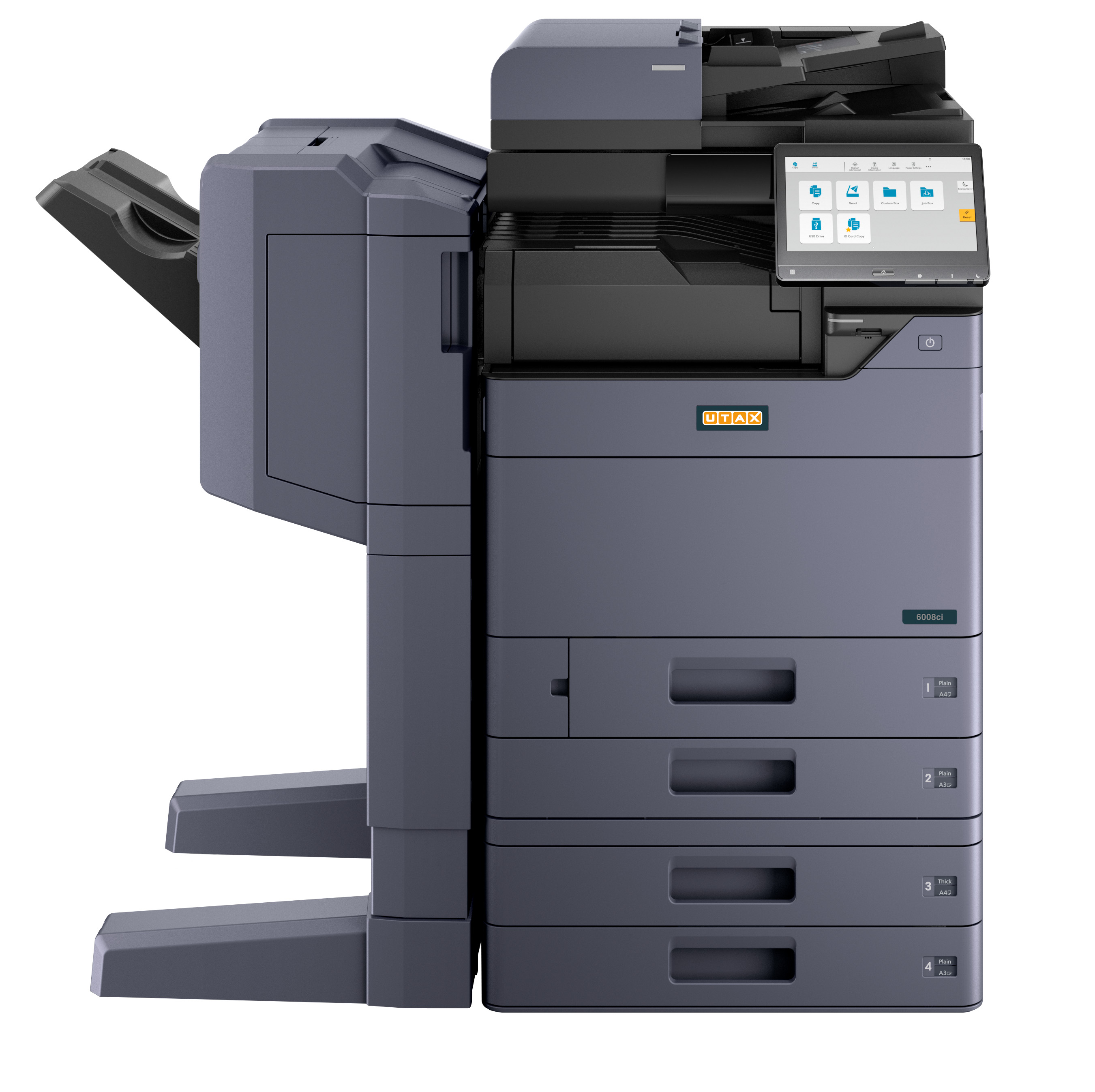

UTAX 6008ci
[6008ci]Copy / Print / Scan / Fax in A3 a colori
Specifiche Tecniche
Type |
Desktop
|
|
Function |
Copy
print
scan
optional: fax
|
|
Print technology |
Laser colour and b/w
|
|
Original format |
max A3 from platen glass
|
|
Print speed (A4, Simplex) B/W |
60
|
|
Print speed (A3, Simplex) B/W |
30
|
|
Copy speed (A4, Simplex) B/W |
60
|
|
Copy speed (A3, Simplex) B/W |
30
|
|
Print speed (A4, Simplex) Colour |
60
|
|
Print speed (A3, Simplex) Colour |
30
|
|
Copy speed (A4, Simplex) Colour |
60
|
|
Copy speed (A3, Simplex) Colour |
30
|
|
1st page (printing, colour) |
5.1
|
|
1st page (printing, b/w) |
3.8
|
|
1st page (copying, colour) |
4.4
|
|
1st page (copying, b/w) |
3.4
|
|
Warm-up time |
17
|
|
Copy resolution |
600 x 600 dpi
|
|
Greyscales |
256
|
|
Paper feed (Universal cassettes amount) |
2 x 500 sheet universal cassettes
|
|
Paper feed (1st cassette types) |
A6R-A4
|
|
Paper feed (2nd cassette types) |
A6R-SRA3
|
|
Paper feed (Multi-Bypass amount) |
1 x 500 sheet
|
|
Paper feed (Multi-Bypass types) |
A6R-SRA3
Banner [305 x 1,219 mm]
|
|
Paper feed (print-only) |
SRA3 and banner
|
|
Paper weights (Universal cassette min) |
52
|
|
Paper weights (Universal cassette max) |
300
|
|
Paper weights (Multi-Bypass min) |
52
|
|
Paper weights (Multi-Bypass max) |
300
|
|
Paper weights (Duplex min) |
60
|
|
Paper weights (Duplex max) |
256
|
|
Paper output |
500 sheet A4
|
|
System memory (RAM) |
4
|
|
System memory (SSD) |
64
|
|
System memory (Optional) |
320 GB HDD
|
|
Continuous copying (min) |
1
|
|
Continuous copying (max) |
9999
|
|
Zoom (min) |
25
|
|
Zoom (max) |
400
|
|
Zoom (step) |
1
|
|
Functions |
Adjustable colour touch screen (10.1 inch)
duplex
1000 management codes
skip blank pages
motion sensor
encryption/overwriting of hard disk data (Data Security Kit and Trusted Platform Module)
secure boot and run time integrity check
trusted platform modul (TPM)
etc.
|
|
Dimensions (height) |
790
|
|
Dimensions (width) |
602
|
|
Dimensions (depth) |
665
|
|
Weight |
95
|
|
Mains voltage |
220/240 V
|
|
Utility frequency |
50/60 Hz
|
|
Power consumption (max) |
1750
|
|
Power consumption (busy) |
990
|
|
Power consumption (standby) |
45
|
|
Power consumption (sleep) |
0.5
|
|
Power consumption (TEC) |
0.79
|
|
Safety |
GS/TÜV
CE
|
|
Type |
Integrated within the system
|
|
Print format |
A6R-SRA3
|
|
Print resolution (min) |
600 x 600 dpi
|
|
Print resolution (max) |
1,200 x 1,200 dpi
|
|
Processor |
ARM A53 1,6GHz
|
|
Interfaces |
USB 3.0
USB 2.0
10/100/1000BaseTX
USB host
NFC
SD-Card Slot
|
|
Network protocols |
TCP/IP
Net BEUI
|
|
Operating systems |
Windows 7
Windows 8.1
Windows 10
Server 2008
Server 2008 R2
Server 2012
Server 2012 R2
Server 2016
Server 2019
Novell NetWare
Linux
Mac ex OS 10.9
|
|
Emulations |
PCL6 (PCL 5e, XL)
KPDL 3 (PostScript 3 compatible)
XPS
PRESCRIBE Ilc
|
|
Functions |
USB direct printing
PDF/XPS direct printing
printing of e-mails
private printing
barcode printing
SNMPv3
Mobile Print (Android, iOS)/Apple AirPrint
|
|
Scan type |
CCD colour and b/w
|
|
Scan format |
max A3
|
|
Scan speed (Feeder 1, simplex, colour) |
137
|
|
Scan speed (Feeder 1, simplex, b/w) |
137
|
|
Scan speed (Feeder 1, duplex, colour) |
274
|
|
Scan speed (Feeder 1, duplex, b/w) |
274
|
|
Optional feeder 1 |
DP-7170 document processor with simultaneous duplex scanning and multi-feed detection (A6R-A3, capacity: 320 sheet A4, paper weight 35-220 g/m²)
|
|
Scan resolution |
200 dpi
300 dpi
400 dpi
600 dpi
|
|
Scan mode |
text
photo/text
optimised for OCR
|
|
File types |
TIFF
JPEG
PDF
PDF/A
high compression PDF
encrypted PDF
XPS
OpenXPS
|
|
Interfaces |
10/100/1000BaseTX
|
|
Network protocol |
TCP/IP
|
|
Operating systems |
Windows 7
Windows 8.1
Windows 10
Server 2008
Server 2008 R2
Server 2012
Server 2012 R2
Server 2016
Server 2019
|
|
Functions |
Scan to SMB
scan to e-mail
scan to FTP
scan to USB
TWAIN scan
WIA scan
SMTP authentication
LDAP
|
|
Type |
Faxsystem 12
|
|
Compatibility |
Super G3
|
|
Original format |
max A3
|
|
Modem speed |
33.6
|
|
Transmission speed |
3 seconds or less using JBIG
|
|
Compression method |
JBIG
MMR
MR
MH
|
|
Fax resolution |
Standard (200 x 100 dpi)
fine (200 x 200 dpi)
super fine (200 x 400 dpi)
ultra fine (400 x 400 dpi)
600 x 600 dpi
|
|
Fax memory |
170
|
|
Abbreviated dial |
2000
|
|
One touch dial |
1000
|
|
Group dial |
500
|
|
Operating systems |
Windows 7
Windows 8.1
Windows 10
Server 2008
Server 2008 R2
Server 2012
Server 2012 R2
Server 2016
Server 2019
|
|
Functions |
Network fax driver
automatic redialling
delayed transmission
max 2 fax kits for parallel transmission and reception
|
|
Original feeder |
DP-7150 document processor with automatic reverse function (A6R-A3, capacity: 140 sheet A4, paper weight 35- 160 g/m²)
DP-7140 document processor with automatic reverse function (A5R-A3, capacity: 50 sheet A4, paper weight 45-160 g/m²)
DP-7160 document processor with simultaneous duplex scanning (A6R-A4, capacity: 320 sheet A4, paper weight 35-220 g/m²)
DP-7170 document processor with simultaneous duplex scanning and multi-feed detection (A6R-A3, capacity: 320 sheet A4, paper weight 35-220 g/m²)
|
|
Original platen cover |
Platen cover type E (if document processor is not installed)
|
|
Finisher |
DF-7100 internal finisher (capacity: 500 sheet A4, stapling max 50 sheet A4)
DF-7120 (capacity: 1,000 sheet A4, stapling max 50 sheet A4),
PH-7120 hole punch unit for DF-7100
PH-7C hole punch unit for DF-7120/7140
BF-730 brochure module for DF-7140 (max 20 sheet saddle stitching and folding A4/A3, tri-folding max X sheet A4)
DF-7140 (capacity: 4,000 sheet A4, stapling max 65 sheet A4)
MT- 730 (B) Multi Tray für DF-7140
IS-7100 Inserter for DF-7140/7150 (2 x 250 sheets paper feed A6R - SRA3)
ZF-7100 Z-fold unit for DF-7140/7150 (Z-fold, engineering fold, tri-folding, saddle stich)
|
|
Job Separator |
JS-7100 (100 sheet, 52-300 g/m², A6R - SRA3)
JS-7110 inner shift tray (250 sheet, 52-300 g/m², A6R - SRA3)
|
|
Paper feed |
PF-7140 (2 x 500 sheet universal cassettes [A5R-SRA3])
PF-7150 (2 x 1,500 sheet large capacity cassette [A4])
PF-7120 (3,000 sheet large capacity tray [A4], side deck)
|
|
Other options |
Scan extension kit (A)
Internet fax kit (A)
Card authentication kit (B)
Keyboard holder 10
Banner guide 10
UG-33 ThinPrint® kit
UG-34 Emulation option kit
IB-50 Gigabit Ethernet card
IB-51 WLAN card (IEEE802.11/b/g/n)
IB-37 WLAN card (IEEE802.11a/b/g/n/ac)
NK-7120 Numeric Keyboard (10 keys)
DT-730(B) Document tray
cabinet no. 81
HD-15 (320 GB HDD)
HD-16 (1 TB HDD)
Fiery Printing System 17
|
